Add API Steps to a Scenario ​

You can add API steps to your Gherkin scenarios to validate API responses and perform checks on response fields. This guide will walk you through adding an API call within a scenario using the BlinqIO API app.

Before you begin

  • Ensure that you are logged into your BlinqIO account.
  • Have a scenario ready where the API call will be added.

Launching the API App ​

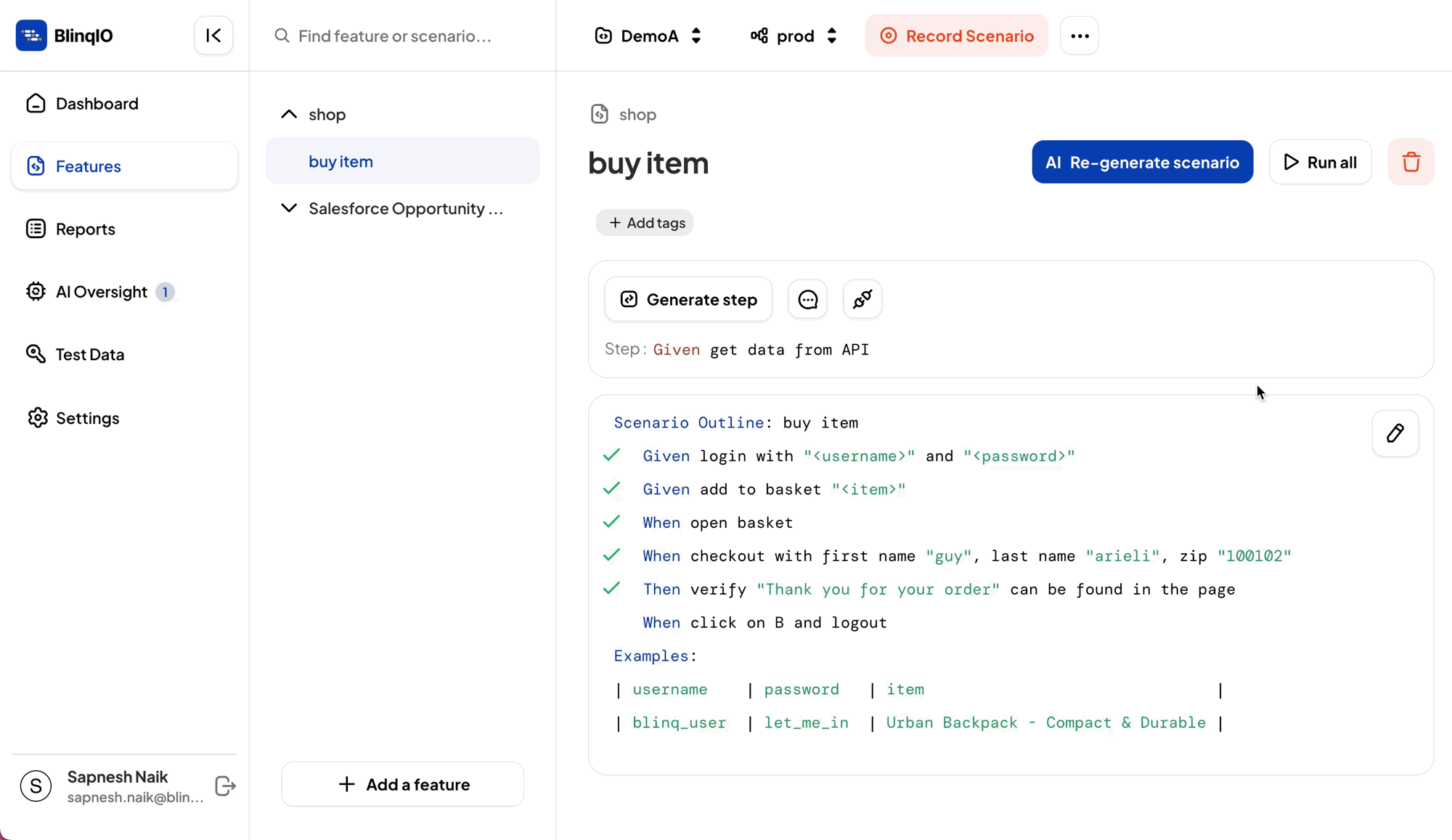

  1. Edit the scenario by adding a new step. You can name the step anything relevant to your test, but ensure that it starts with either Given or When.

    CleanShot 2024-09-20 at 15.01.34

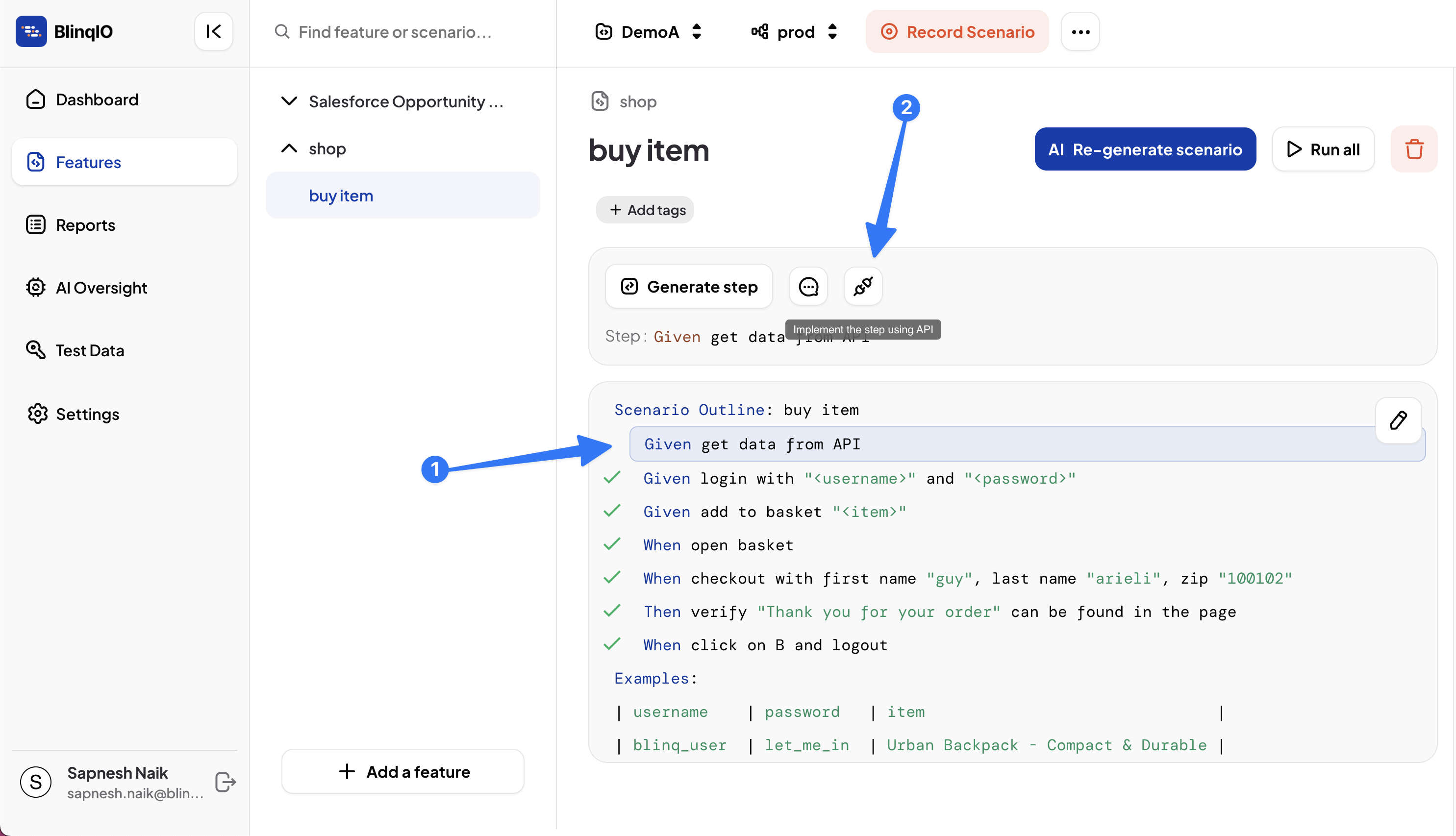

  2. Select the newly added Step and click Add API.

    image-20240920150506110

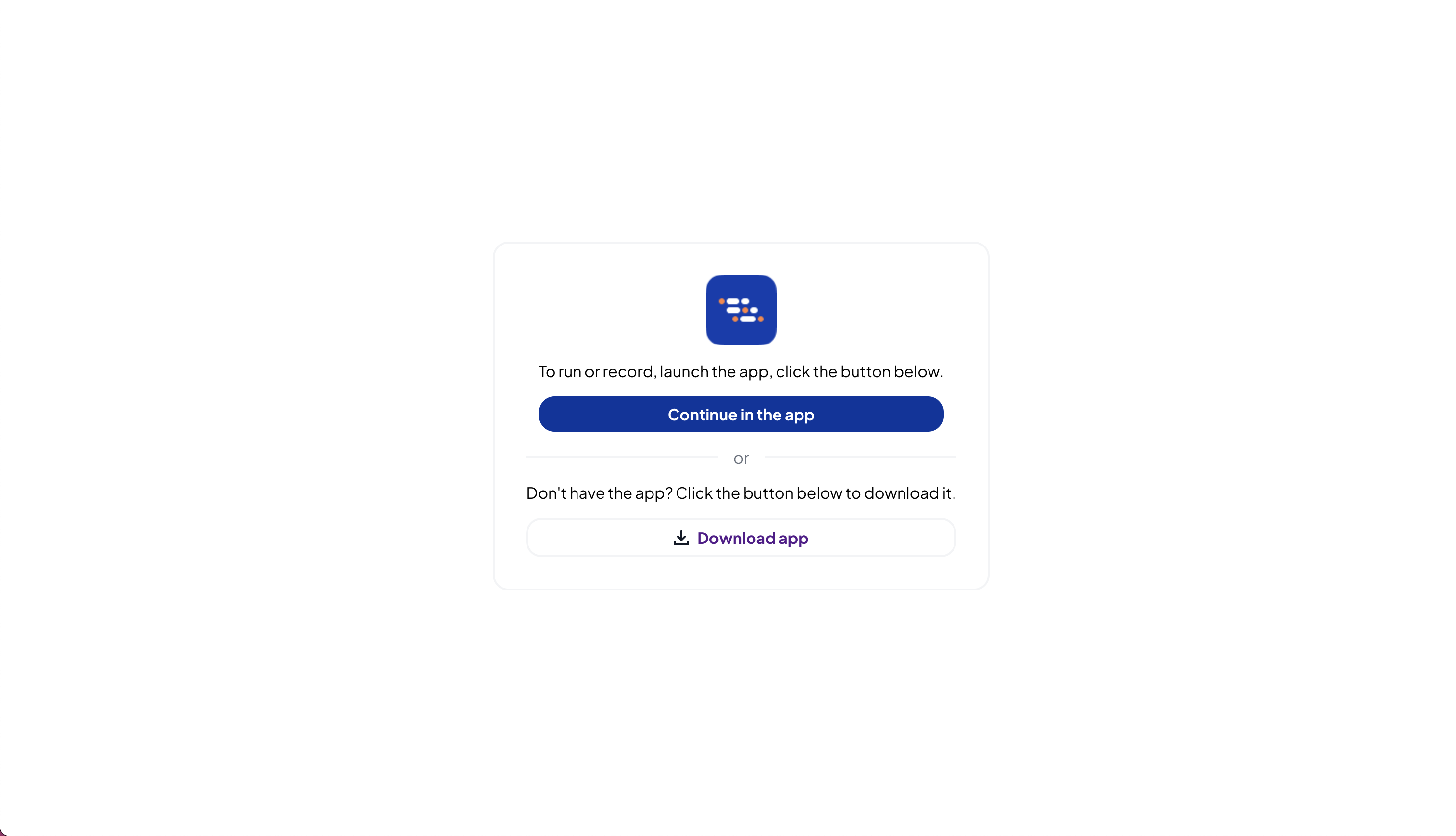

    The App launcher page displays.

    image-20240920150550546

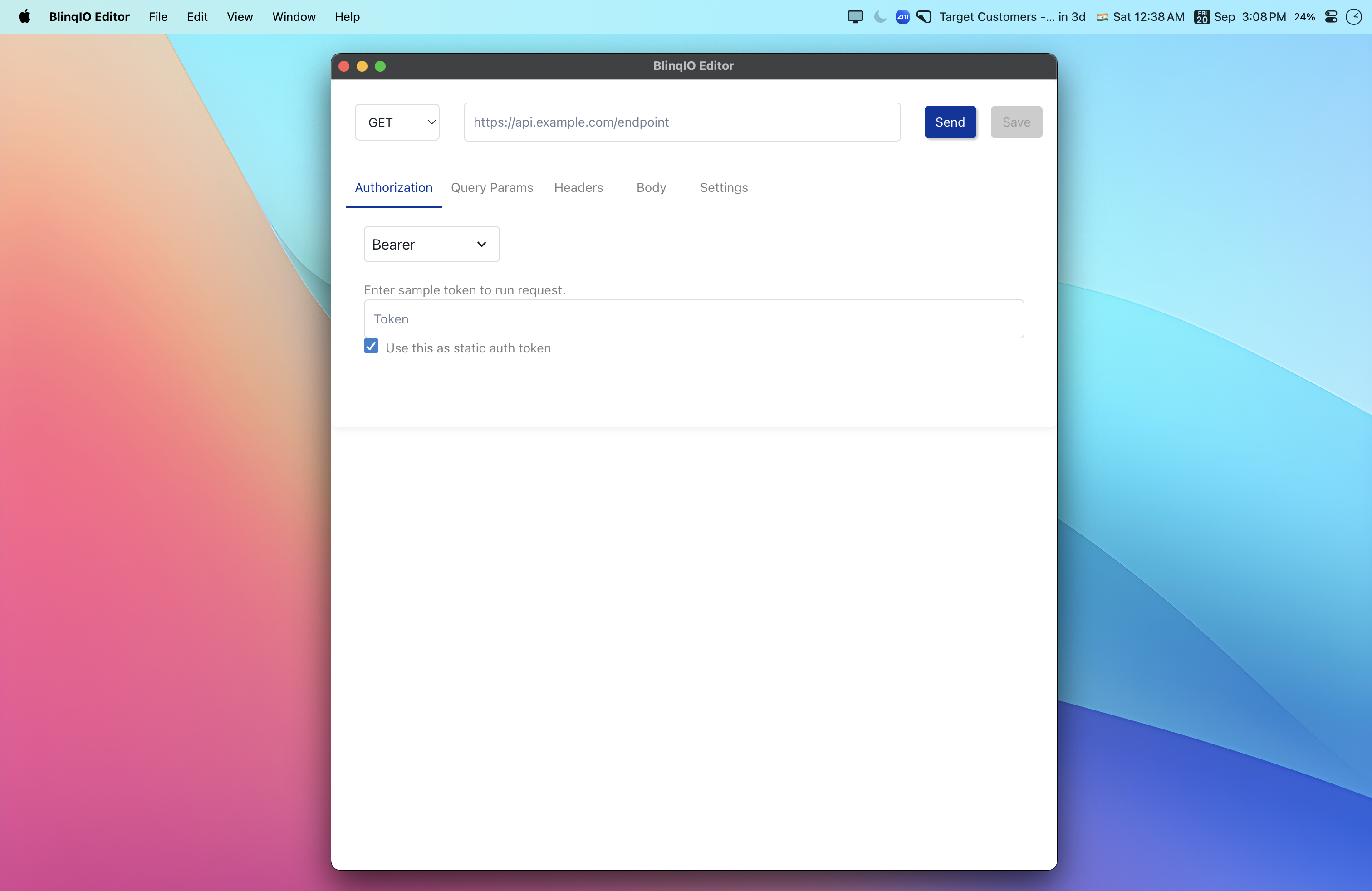

  3. Click Continue in the app to open the BlinqIO API app in your system.

    image-20240920150816800

Configuring the API Request ​

Once the BlinqIO API app is launched, you'll be able to set up the API request by entering the URL and configuring the following options:

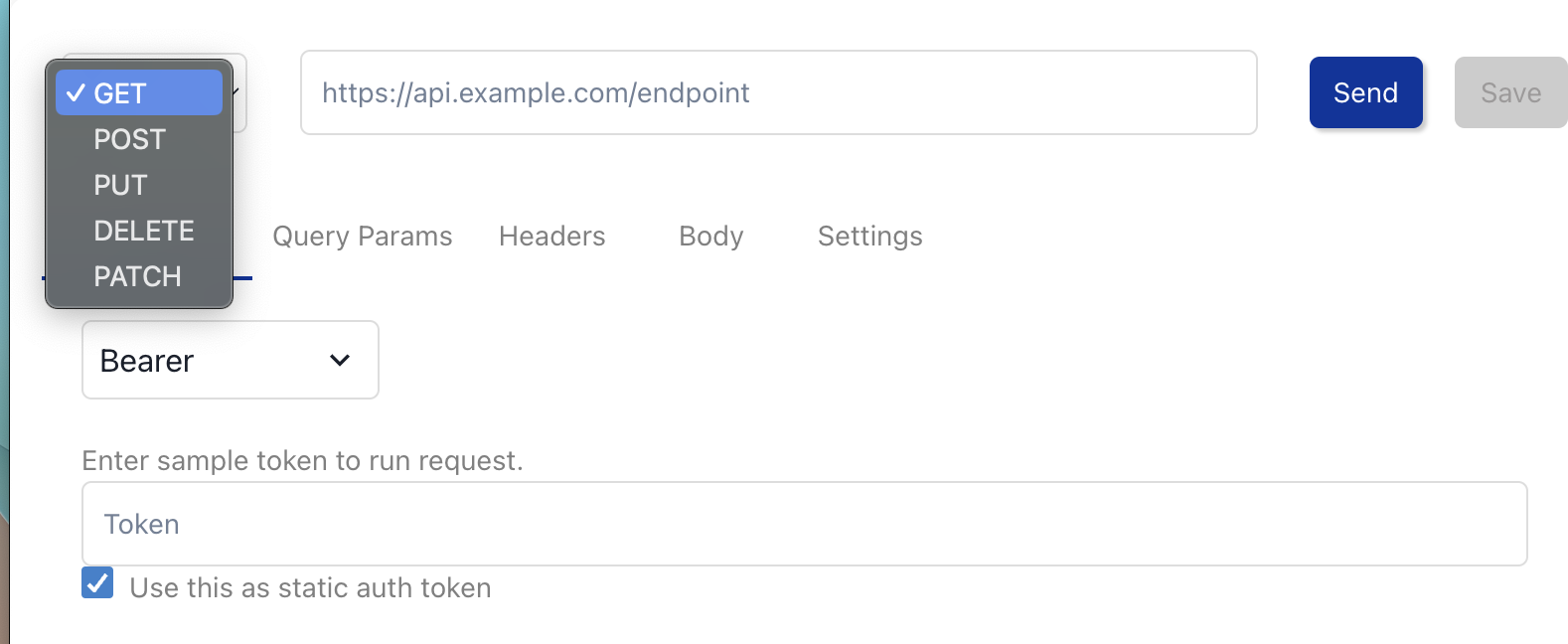

Choose the appropriate HTTP method (GET, POST, PUT, DELETE) based on the API you are testing. The request type determines the nature of the API interaction.

image-20240920151451075

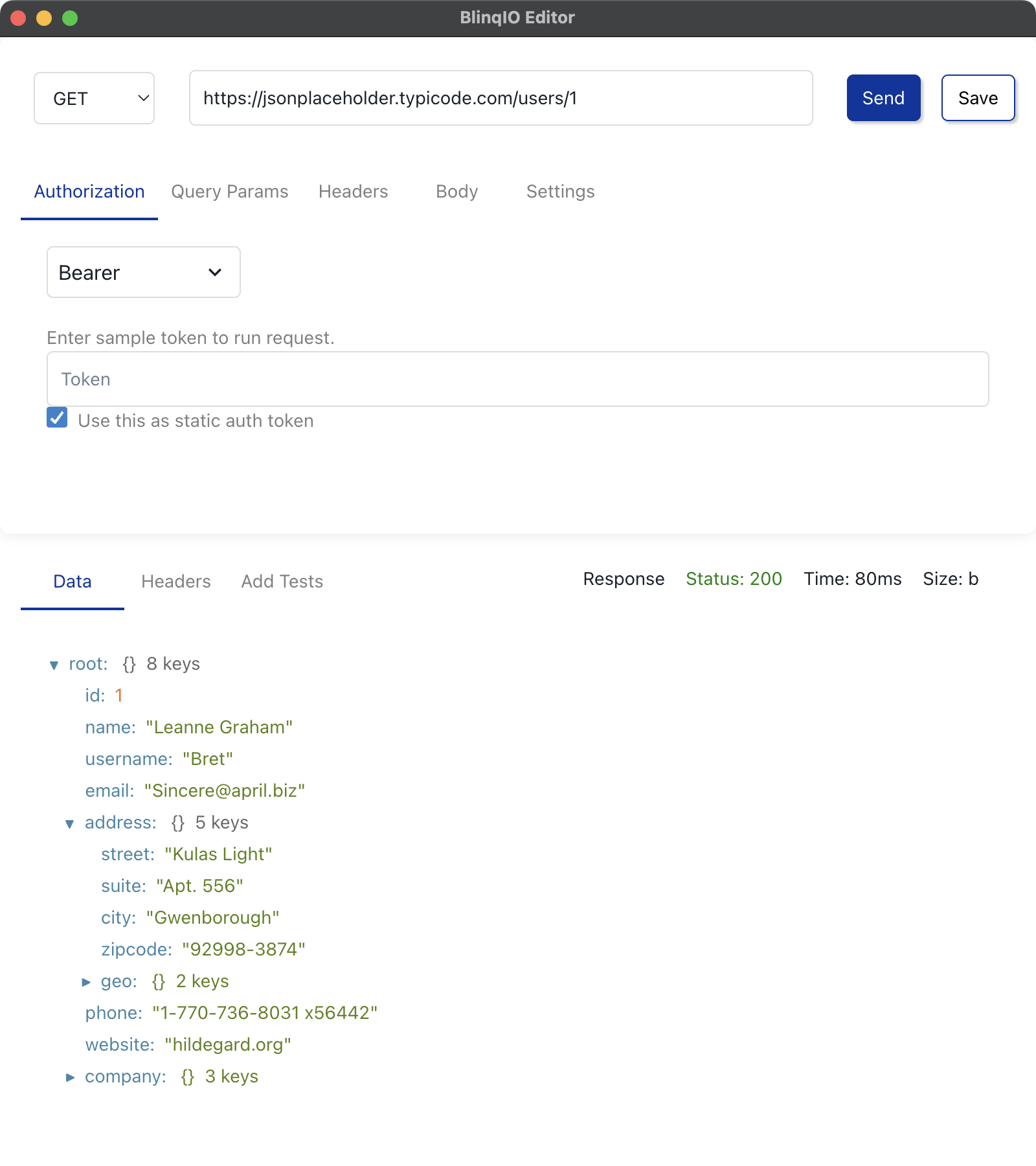

Once all configurations are set, click Send. The API response will be populated in the response section, allowing you to validate the results and perform further tests on specific fields, such as status codes, headers, and response body content.

image-20240920154049666

Adding Tests for Response Fields ​

You can add tests to check whether the API response data matches what you expect for each test run.

To add API tests:

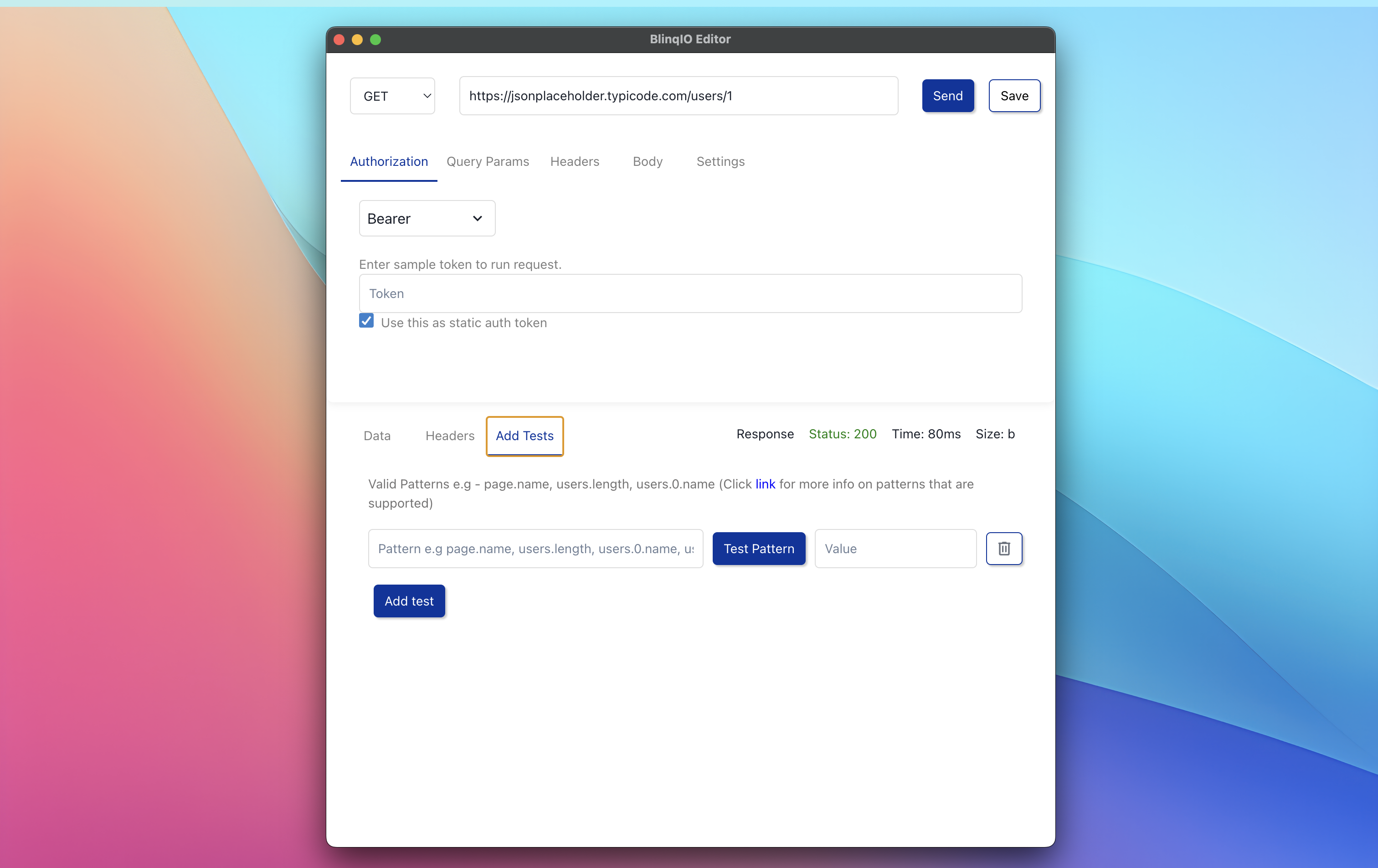

  1. Switch to the Add Tests tab.

    image-20240920154908243

  2. In the Pattern field, specify the response field using an object pattern. Examples include page.name, users.length, users.0.name, users.*.name.

  3. Click Test Pattern to automatically fetch the value from the response data. You can also manually enter a value if needed.

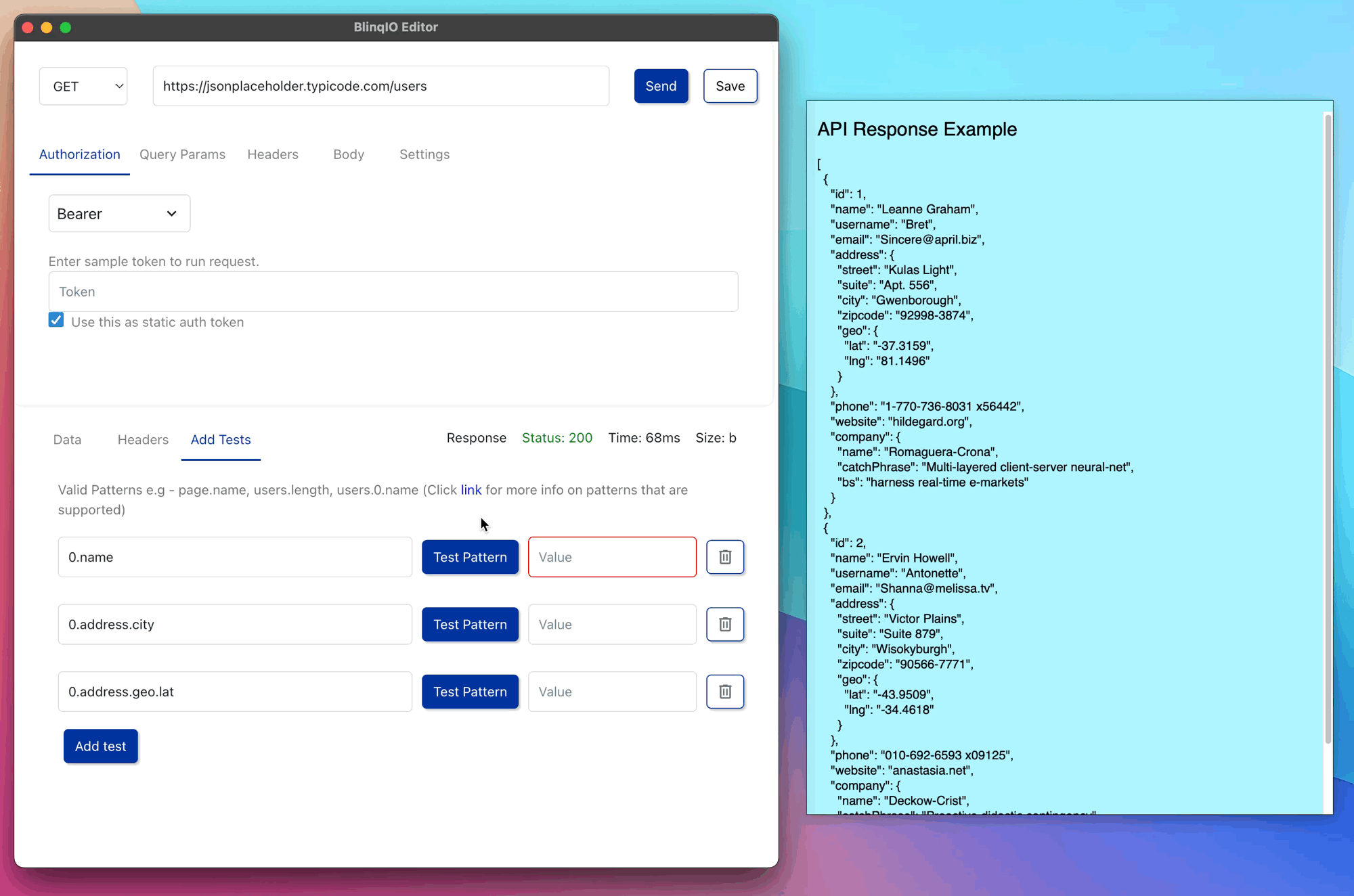

    Example 1: Accessing from an array

    APITestExample1

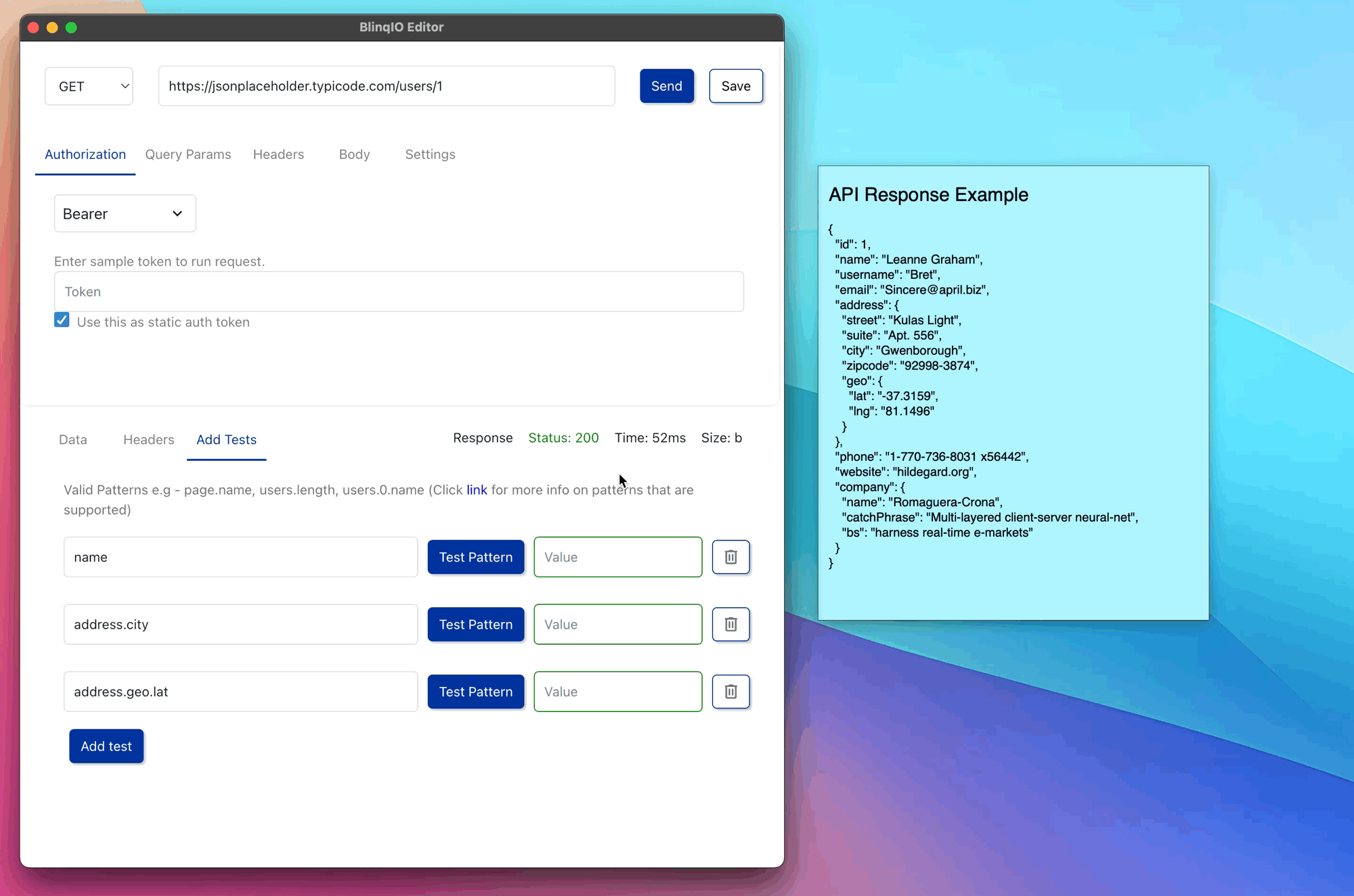

    Example 2: Accessing from an object

    CleanShot 2024-09-20 at 16.06.38

  4. Use the Add Test option to include more tests for different response fields as needed.

Saving the API Step ​

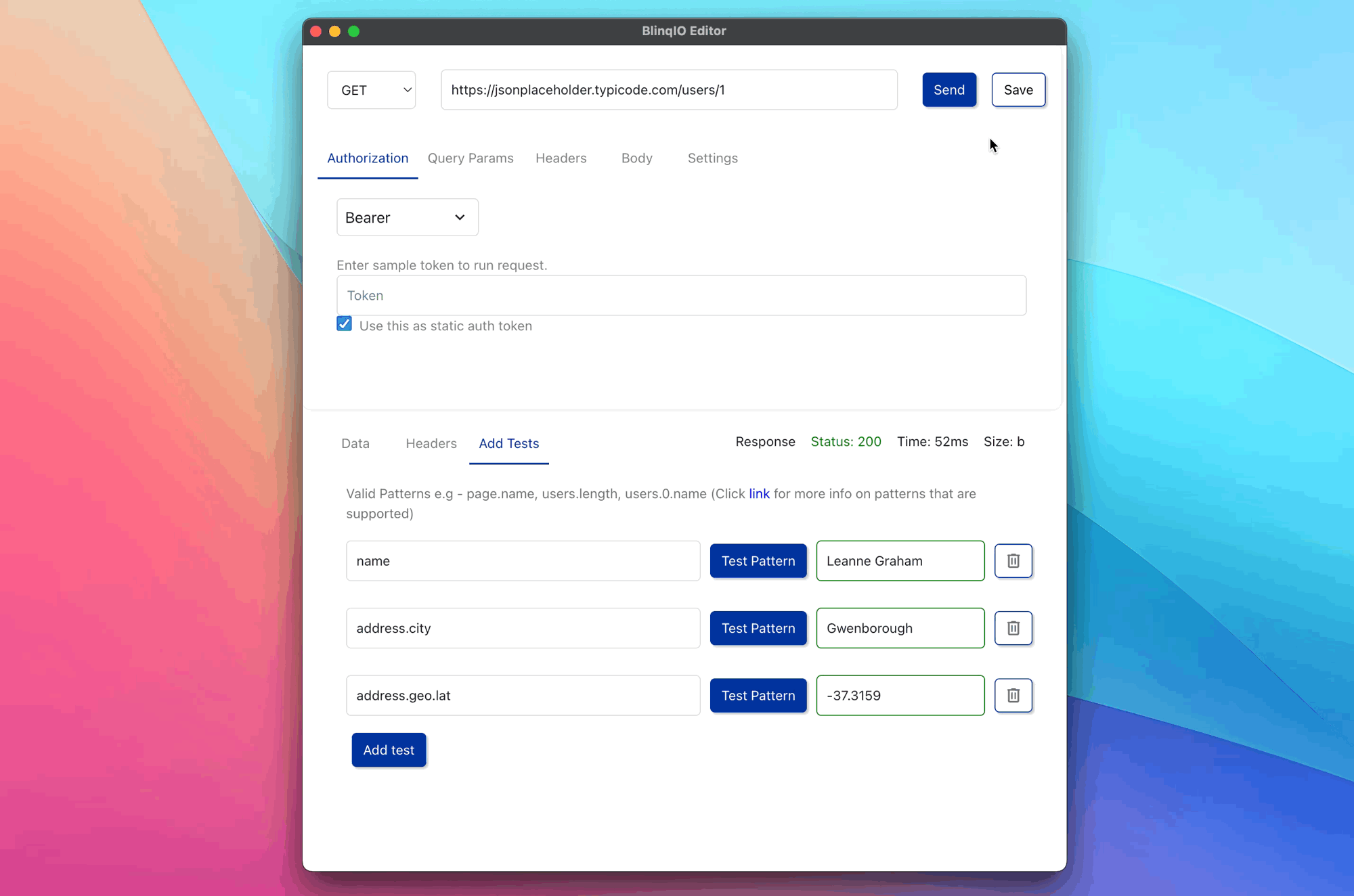

Click Save to store the API step and its tests.

We recommend keeping the Save API response as test data option enabled and providing a namespace value. This ensures that the API response can be reused as test data using the namespace in subsequent steps of the scenario.

SaveAPIStep

Running the API Step ​

Once the API step is saved, refresh the scenario page. The step will now display a green checkmark, indicating that the API step has been added successfully.

image-20240920161243377

To execute the test, Run All steps in the scenario. The test report for the API step will include:

  • Number of tests passed
  • Response body
  • Response headers
  • API test results

APIStepReport
